Clipping

Clip components are declarative children of a <Group>: data-only, consumed by the group into its clip prop — they render nothing themselves.

import { ClipRect, ClipRRect, ClipPath } from "@scumble/react";

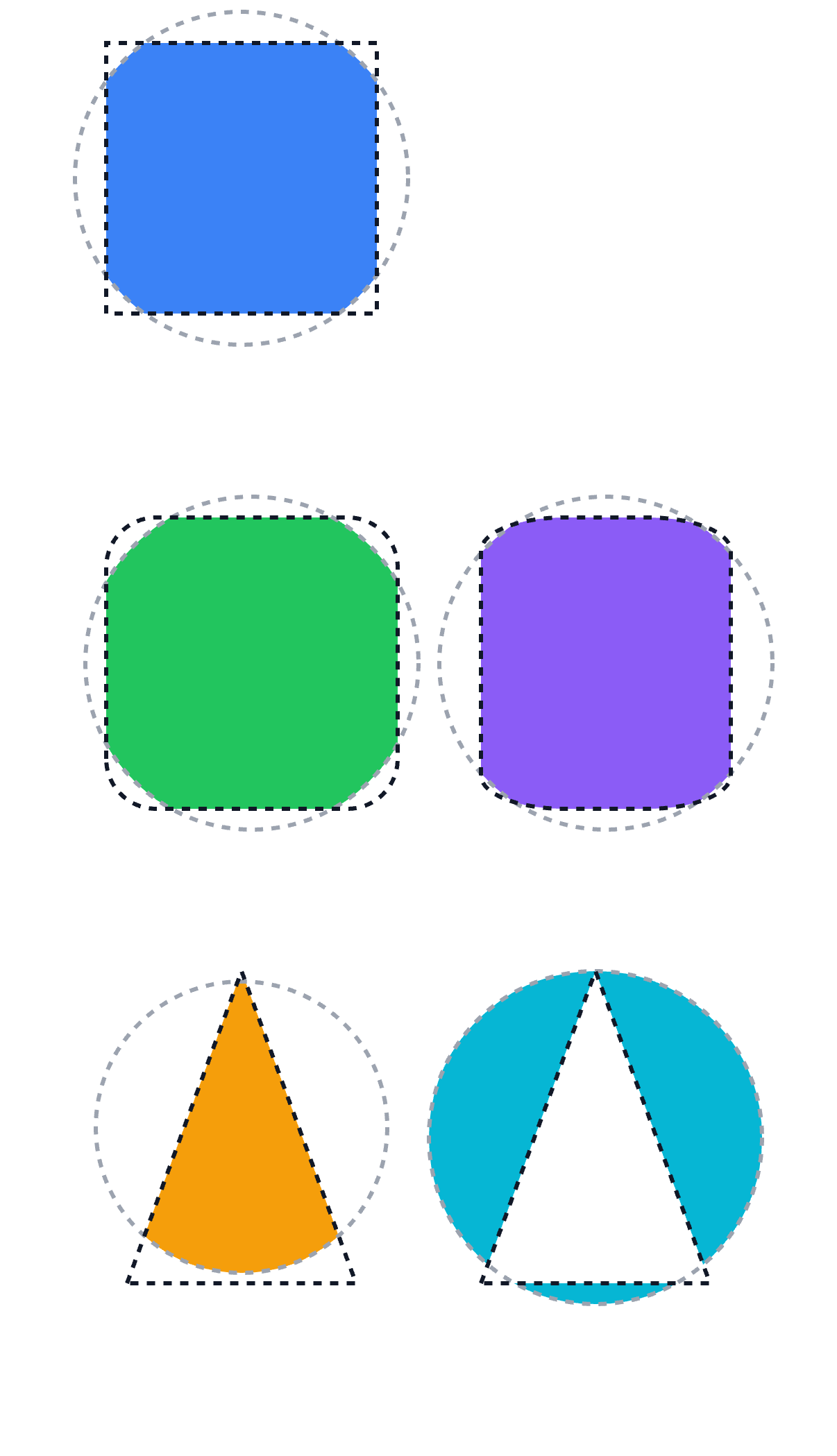

Several clip children combine in document order: each op="intersect" (the default) intersects with the clips before it, and op="difference" subtracts from them. Clip geometry is in the group's local coordinate space — the group's own transform applies to the clip too.

<Group>
  <ClipRRect x={20} y={20} width={120} height={120} radii={16} />
  <Circle cx={80} cy={80} radius={70} color="#22c55e" />
</Group>

The op prop (ClipOpProp) on every clip component:

Value	Description
"intersect"	Intersect with the clips before it (default).
"difference"	Subtract from the clips before it.

<ClipRect>

Clip a group's subtree to a rectangle.

<Group>
  <ClipRect x={20} y={20} width={120} height={120} />
  <Circle cx={80} cy={80} radius={70} color="#3b82f6" />
</Group>

Props

Prop	Type	Default	Description
x	number	0	Left edge x.
y	number	0	Top edge y.
width	number	—	Clip width. Required.
height	number	—	Clip height. Required.
op	"intersect" | "difference"	"intersect"	How this clip combines with the clips before it.

<ClipRRect>

Clip a group's subtree to a rounded rectangle.

<Group>
  <ClipRRect x={20} y={20} width={120} height={120} radii={16} />
  <Circle cx={80} cy={80} radius={70} color="#22c55e" />
</Group>

A 4-corner array clips to a per-corner rounded rect — e.g. only the top corners:

<Group>
  <ClipRRect
    x={0}
    y={0}
    width={120}
    height={200}
    radii={[
      { x: 16, y: 16 },
      { x: 16, y: 16 },
      { x: 0, y: 0 },
      { x: 0, y: 0 },
    ]}
  />
  <Image image={img} width={120} height={200} />
</Group>

Props

All ClipRectProps, plus:

Prop	Type	Default	Description
radii	number | { x: number; y: number } | CornerRadii	—	Corner radii: a number is uniform, {x, y} is per-axis, and a 4-corner array is [top-left, top-right, bottom-right, bottom-left]. Required.

<ClipPath>

Clip a group's subtree to an arbitrary path — an SVG d string or a Path2D.

<Group>
  <ClipPath path="M0 0 L100 0 L100 100 Z" />
  <Rect width={200} height={200} color="#f59e0b" />
</Group>

Props

Prop	Type	Default	Description
path	string | Path2D	—	SVG path data string, or a Path2D object built command-style. Required.
op	"intersect" | "difference"	"intersect"	How this clip combines with the clips before it.
