Images

<Image> draws a bitmap; useImage resolves a source uri into a stable handle. The bitmap loads asynchronously on the platform side — the node stays blank until pixels land (there is no null-while-loading phase and no onError; no native→JS channel exists for it).

import { Image, useImage, createImageHandle } from "@scumble/react";
import type { ImageHandle } from "@scumble/react";

<Image>

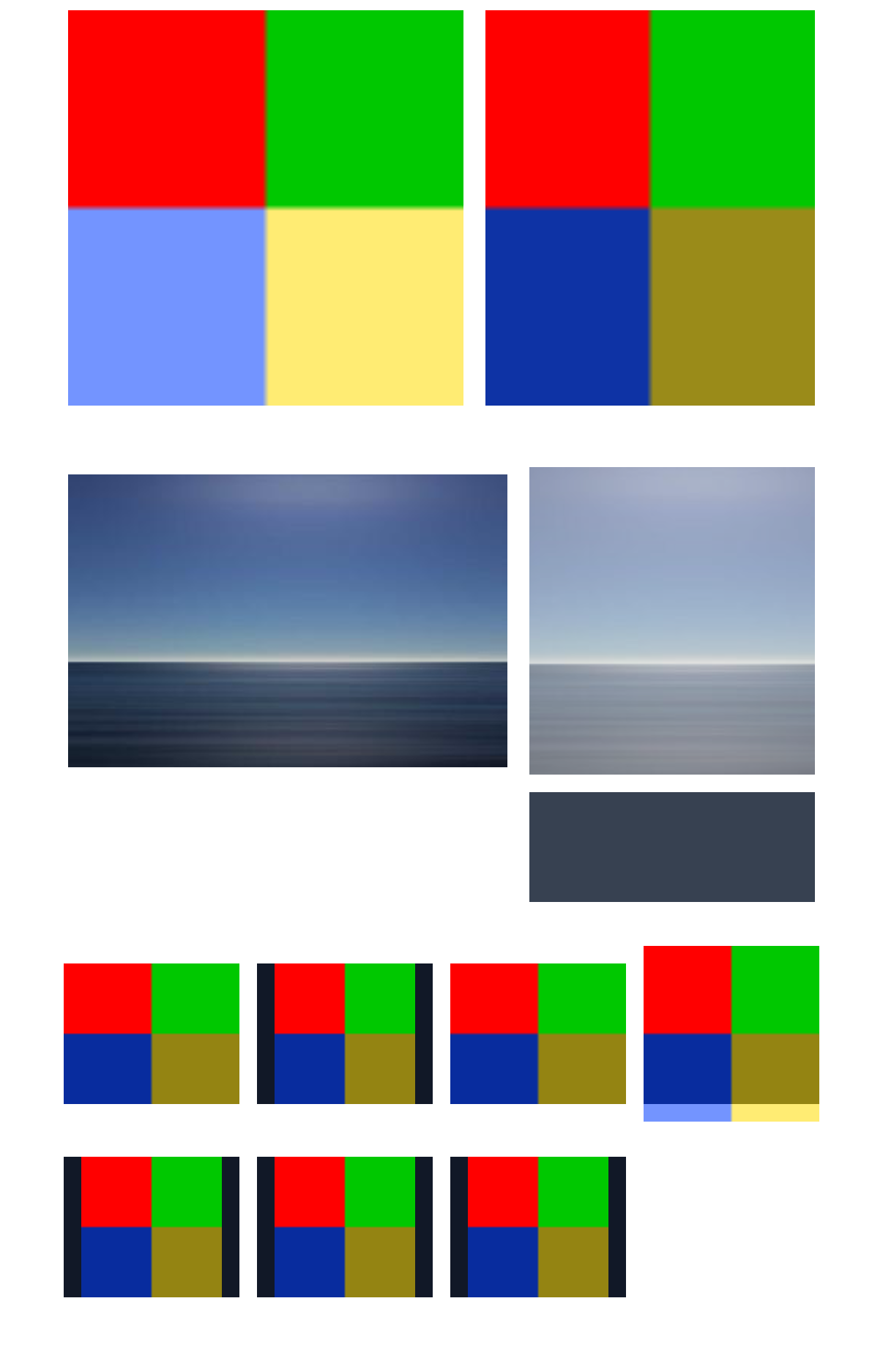

Draw a bitmap on the canvas. The source is a useImage() handle or a bare uri string (http(s) URL / data URI); fit (default "contain") inscribes the bitmap into the destination rect, and sampling controls how texels are sampled when it is scaled. Inherited opacity/blendMode/filters apply; the fill color does not.

const image = useImage("https://picsum.photos/seed/oslo/300/200");

<Image image={image} x={0} y={0} width={300} height={200} fit="cover" />
<Image image={image} width={300} height={200} sampling={{ filter: "nearest" }} />

A missing image or destination size renders nothing.

Props

All shared graphic props, plus:

Prop	Type	Default	Description
image	ImageHandle | string | null	—	The image to draw: a useImage() handle or a bare uri string (http(s) URL / data URI). null/undefined draws nothing. Required.
x	number	0	Left edge x (dp).
y	number	0	Top edge y (dp).
width	number	—	Destination width (dp). Required unless rect is given.
height	number	—	Destination height (dp). Required unless rect is given.
rect	{ x?: number; y?: number; width: number; height: number }	—	Destination rect as one object; takes precedence over the x/y/width/height props (x/y default to 0).
fit	Fit	"contain"	How the bitmap is inscribed into the destination rect (the CSS object-fit family). Resolved against the bitmap's intrinsic size at render time.
sampling	ImageSamplingOptions	{ filter: "linear", mipmap: "none" }	How texels are sampled when the bitmap is scaled. cubic is transported but not yet consumed by the released skity build — it takes effect once a skity-native with CubicResampler ships (non-zero B/C then replaces filter).

useImage

Resolve an image source into an ImageHandle. The handle is returned immediately — no loading state, no onError; the platform loads the bitmap asynchronously and the <Image> node simply shows up once pixels land.

const image = useImage("https://picsum.photos/seed/x/300/200");
// image === null when source is null/empty → draw nothing

function useImage(source: string | null | undefined): ImageHandle | null;

A null/empty source returns null.

createImageHandle

The non-hook handle factory behind useImage. Backed by a module-level cache: the same uri always yields the same handle reference (=== stable), so it is safe as a dependency/equality key, and multiple <Image> nodes sharing a uri map to one store entry for free.

import { createImageHandle } from "@scumble/react";

const handle = createImageHandle("https://example.com/tile.png");

function createImageHandle(uri: string): ImageHandle;

Image types

The image-related types re-exported from @scumble/react (originally from @scumble/graphics).

ImageHandle

Opaque handle to an image source, built by useImage/createImageHandle.

interface ImageHandle {
  readonly __kind: "scumble-image";
  readonly uri: string;
}

Fit

How a bitmap is inscribed into its destination rect (the CSS object-fit family), resolved against the bitmap's intrinsic size at draw time.

type Fit = "cover" | "contain" | "fill" | "fitHeight" | "fitWidth" | "none" | "scaleDown";

TileMode

How an image shader tiles outside its fitted rect (Skia's SkTileMode family; also applies to gradient spread).

type TileMode = "clamp" | "repeat" | "mirror" | "decal";

ImageSamplingOptions

Sampling knobs for <Image>; every axis is optional.

interface ImageSamplingOptions {
  filter?: ImageFilterMode; // "nearest" | "linear"
  mipmap?: ImageMipmapMode; // "none" | "nearest" | "linear"
  cubic?: ImageCubicResampler;
}

ImageFilterMode / ImageMipmapMode

ImageFilterMode is "nearest" | "linear"; ImageMipmapMode is "none" | "nearest" | "linear".

ImageCubicResampler

Mitchell/Robinson cubic resampler weights. B == 0 && C == 0 disables cubic sampling (see the sampling caveat on <Image>).

interface ImageCubicResampler {
  B: number;
  C: number;
}
